The best known effect that uses stencil buffering is real-time
shadowing. How does that work? Assume that we're using a game like Quake.
Once the whole screen is rendered (scenery, monsters, objects, etc.),
the Z-buffer contains the depth values for all the visible pixels. Now
we need to figure out how to use the stencil buffer to make objects cast
shadows. This is done by starting at the light source and going around

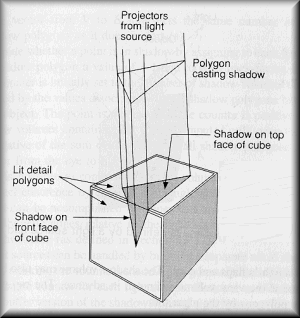

the side of the object/monster casting the shadow (check the pictures
above). Just like in real life, this forms a conical region of eclipse
with the peak at the object casting the shadow and the sides going away
from the light source and expanding until they reach a wall. Now we want
to find out which are within the area of shadow. To do this we use a simple
process. If a pixel's Z-value is located between the Z-value of the front
side and the Z-value of the back side of the region then it is inside
the conical region. Using this comparison, the system can flag pixels
as being either inside or outside the region. Let's say that pixels inside
the region get a value of one in the stencil buffer. Once they are flagged,
the system can render a translucent gray texture to these pixels that
have a stencil value of one. In the final frame, pixels located in the
region and thus in the shadow get a grayish, shadowy look. Well I hope
this article has made it clear just how Z-buffering and stencil buffering
works. If not, please let us know and I will have to write a more in-depth
article in the future. If you have any questions feel free to ask them
