Jedi Knight II - Jedi Outcast (JKII)

JKII is another OpenGL title based on the Quake3 engine.




 640x480 800x600 1024x768 1280x1024 1600x1200
Normal 95.4 95.4 95.6 95.5 93.2
3XFSAA 47.2 59.6 46.6 33.7 7.6
% Diff -51% -38% -51% -65% -92%

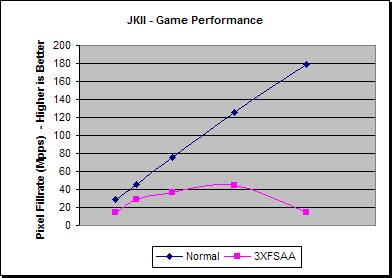

The Xabre 400 is showing a respectable performance under JKII, with the game being more or less entirely CPU dependant throughout all resolutions. The 3X FSAA hit is once again fairly large, and we can see the same dip at 1600x1200 that was evident in RtCW.




 640x480 800x600 1024x768 1280x1024 1600x1200
P4 2.53GHz 95.4 95.4 95.6 95.5 93.2
P4 1.8GHz 68.3 67.8 67.9 68.5 67.9
% Diff -28% -29% -29% -28% -27%

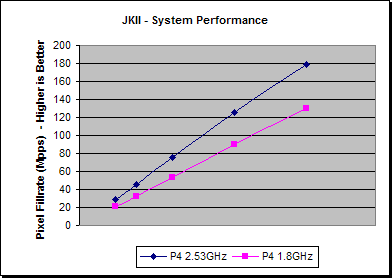

Seeing as the P4 2.53GHz system was CPU limited in this title with the Xabre 400, it should come as no surprise that the 1.8GHz version is more so. The 1.8GHz machine remain in the high 60's throughout all resolutions.


 640x480 800x600 1024x768 1280x1024 1600x1200
AGP4X 95.2 95.3 95.1 95.0 92.1
AGP8X 95.4 95.4 95.6 95.5 93.2
% Diff 0.2% 0.1% 0.5% 0.5% 1.2%

As we saw with RtCW the AGP8X bus is providing a very slight performance edge over the 4X bus.
