Overclocking X700 Pro - Doom 3 Performance

Here we'll look at the overclocked performance of Doom 3 on the Sapphire X700 PRO.

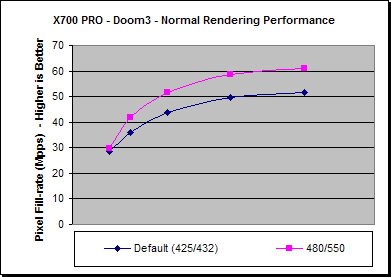

X700 PRO - Doom3 (FPS) 640x480 800x600 1024x768 1280x1024 1600x1200
Default (425/432) 92.7 74.6 55.7 37.9 26.9
480/550 97.2 87.1 65.8 44.9 31.7

% Increase from Default 640x480 800x600 1024x768 1280x1024 1600x1200
480/550 4.9% 16.8% 18.1% 18.5% 17.8%

Again, thanks to the relatively high overclocked speeds the performance gains here peak at a little under 19%. The overclocked speeds enabled the PRO to attain average FPS's above 60 at 1024x768 and above 30 at 1600x1200.

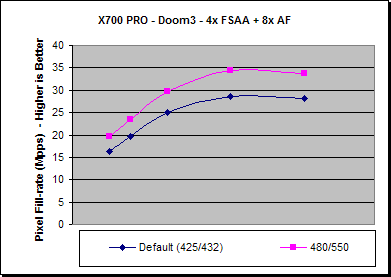

X700 PRO - Doom3, 4x FSAA + 8x AF (FPS) 640x480 800x600 1024x768 1280x1024 1600x1200
Default (425/432) 53.1 40.9 31.7 21.8 14.7
480/550 64.1 49 37.7 26.2 17.6

% Increase from Default 640x480 800x600 1024x768 1280x1024 1600x1200
480/550 20.7% 19.8% 18.9% 20.2% 19.7%

Again, the overclocked gains are around the 20% mark at high resolutions, partially thanks to the high overclock on the memory.
